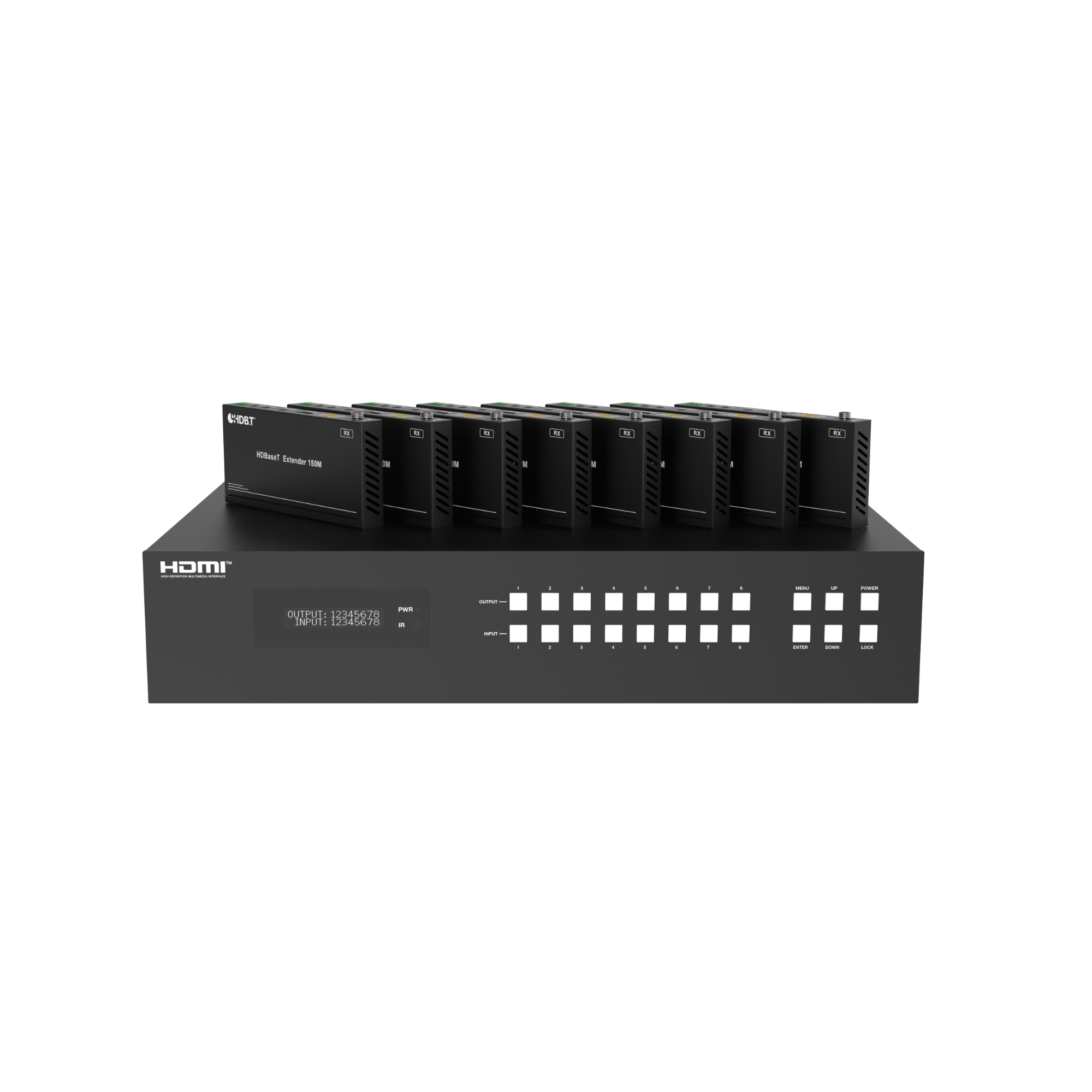

HDCP 2.2 and HDCP 1.x compliant Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI™ & HDBaseT ports, as specified in HDMI™ 2.0b 8x HDMI™ inputs, 8x HDMI™ & HDBaseT mirrored outputs HDMI™ ports transmit 18Gbps lossless uncompressed video bandwidth Support 18Gbps lossless compressed HDBaseT signal transmission Support 4K->1080P Down Scaler for each output port HDR, HDR10, HDR10+, Dolby Vision, HLG are supported HDBaseT output can extend video transmission distance up to 492ft/150m for 1080P or 394ft/120m for 4K2K via a single CAT 5e/6/7 cable HDMI™ audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio) Support IR matrix Audio de-embedded is supported via analog and coax ports Advanced EDID management and CEC control are supported 24V PoC on all HDBaseT ports 2U rack mounted design with front panel OLED display Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
