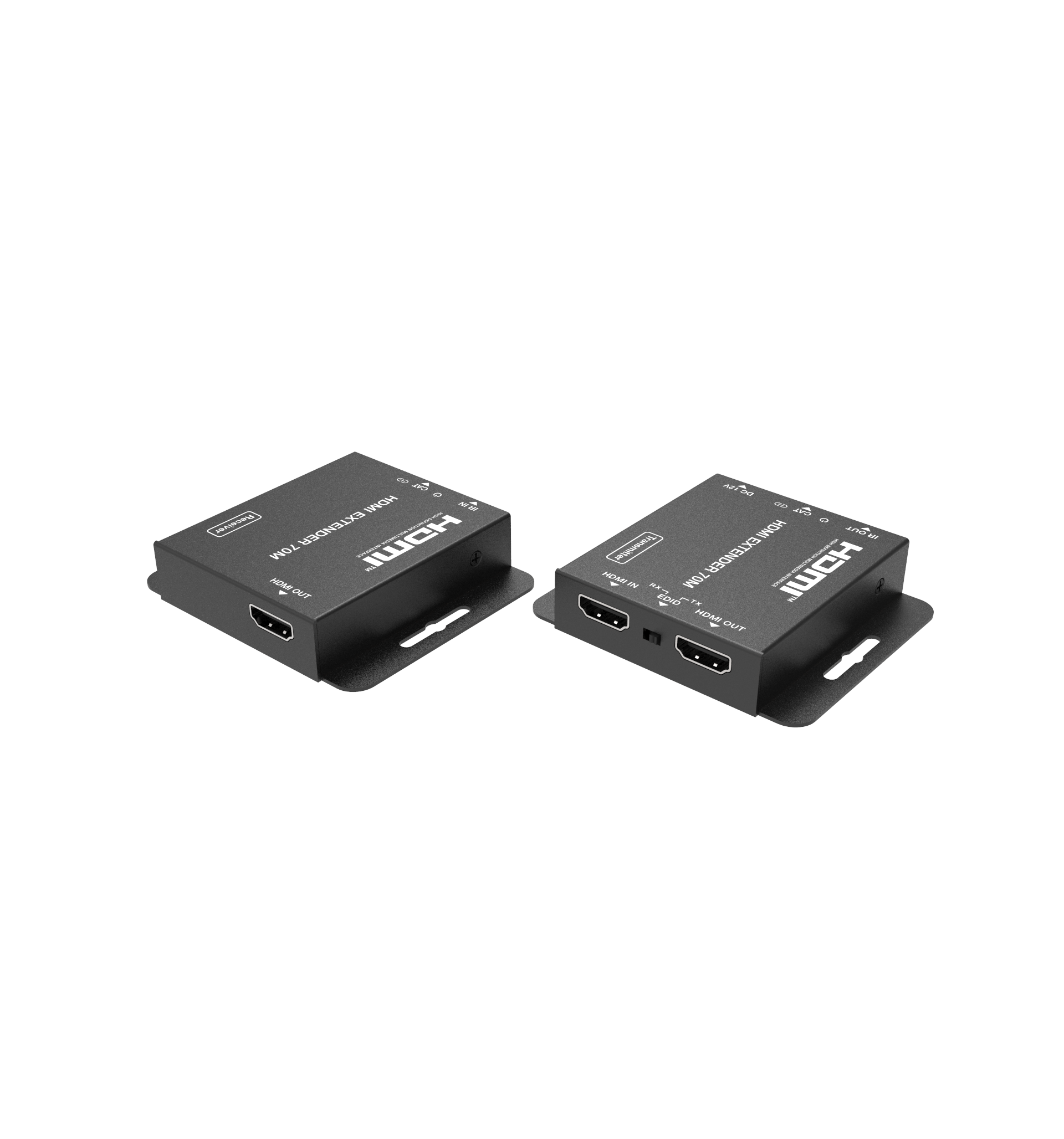

HDMI Extender (70m) with IR Control
☆ HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
☆ Support video resolution up to 4k2k@30Hz YUV 4:4:4
☆ The maximum transmission distance via a single CAT6/5E
cable is as follows:
CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30
CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
☆ Support copying EDID from receiver display or loop out display
☆ Allow for cascading via additional HDMI loop out port
☆ Support one-way POC functionality (from transmitter to receiver)
☆ One-way IR signal transmission
☆ Compact design for easy and flexible installation
- Brand : Linetek
- Category : Extender
- Sub Category : HDMI
- Model No : LTK-ED970C
Download Brochure
