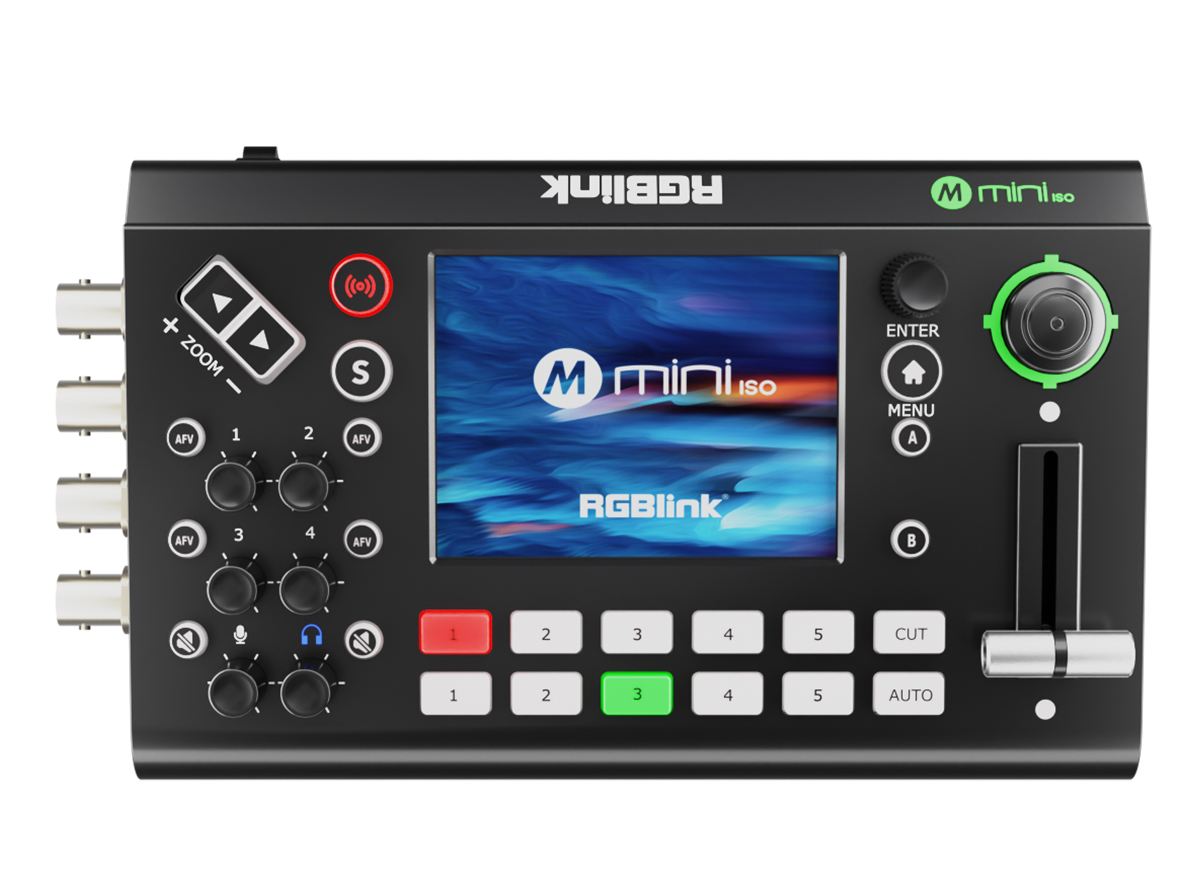

Mini-ISO 10 Channel All-in-One Switcher.

• mini and is convenient to carry
• Quad SDI inputs supports signal from PC, camera,etc.
• Quad HDMI 2.0 inputs (HDCP 1.4 compliance), resolutions up to 4K@60.
• 3.5-inch touch screen for menu operation, signal preview and working status display.
• Dual HDMI 1.3 outputs for monitoring of multi-view Preview, Program or Test Pattern.
• Mix for 4-channel HDMI/SDI embedded and 2-channel external audio.
• USB 2.0 one-key recording in exFAT or FAT32 format with bitrate up to 16Mbps.
• USB output supports YUY2/MJPEG format, which can be recognized as webcam for streaming
• AUTO and WIPE Switch mode available
• 15 transition effects.

• Brand : RGB Link
• Category : Switcher
• Sub Category : Multi FORMAT
• Model No : MINI ISO
• Input Type : 4×HDMI-A,2×USB-A ,4×BNC, 1×USB-A ,1×RJ45 (LAN)
• Output Type : 2×HDMI-A , 2×USB-A ,1×RJ45 (LAN)

Download Brochure
