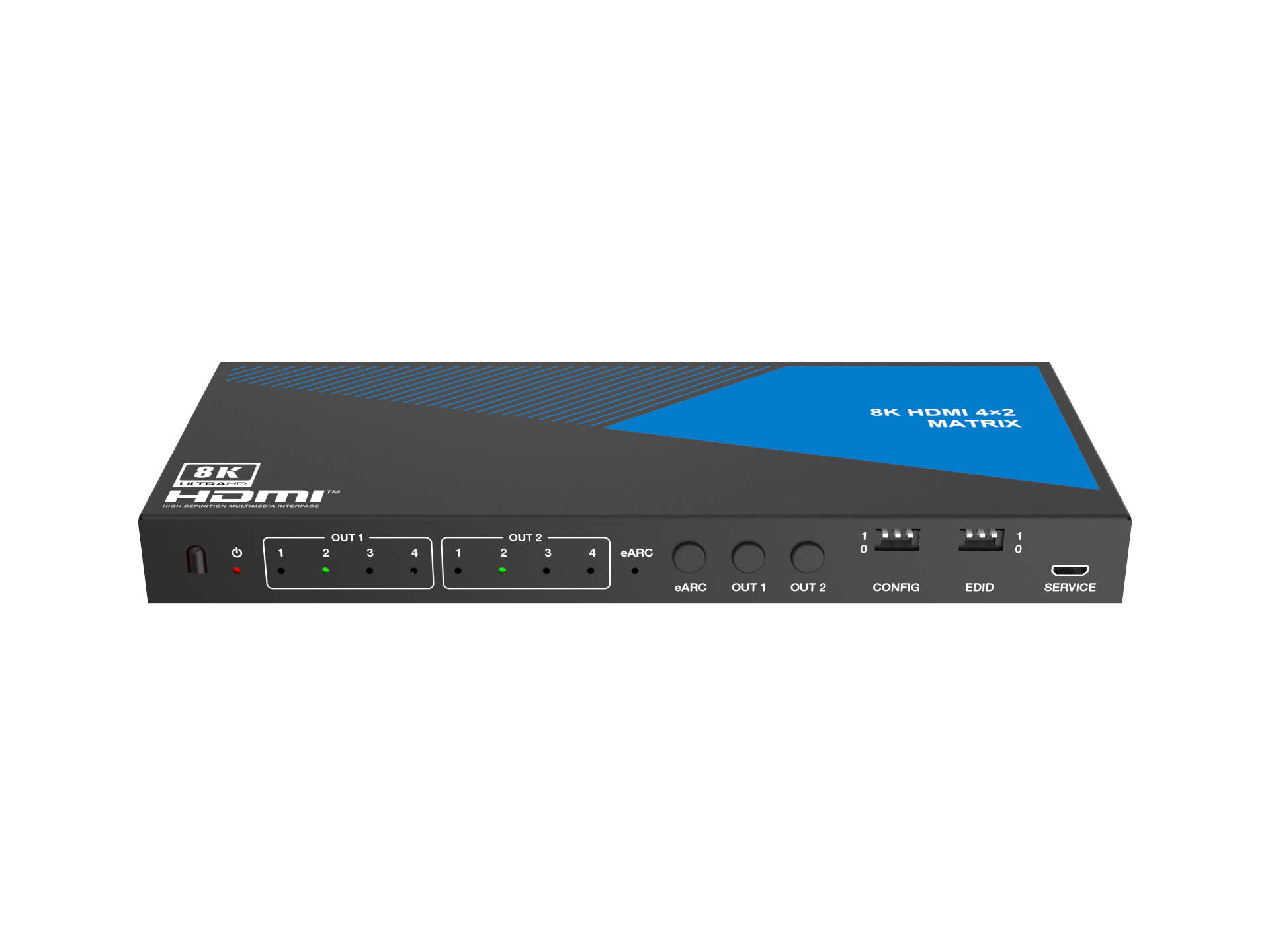

8K HDMI 4x2 Matrix
☆ HDMI 2.1 and HDCP 2.3 compliant
☆ Support 40Gbps video bandwidth
☆ Support video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4
10bit, 4K@120Hz 4:4:4 10bit
☆ VRR, FVA, ALLM supported
☆ Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
☆ Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True
HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD
Master Audio, DSD
☆ INPUTS 1 port and OUT 1 port support eARC/ARC function
☆ Allows HD audio up to Dolby Atmos, DTS:X over TrueHD from ANY
external HDMI source to any eARC/ARC sound system
☆ Support audio de-embedding function (output through the optical and
analog port)
☆ Built-in EDID DIP switch supports advanced EDID management
☆ 8K->4K, 8K/4K->2K downscaler support
☆ Support IR remote control and front panel button switching
☆ Built-in Equalizer, Retiming and Driver
☆ Compact design for easy and flexible installation
- Brand : Linetek
- Category : Matrix
- Sub Category : HDMI Matrix
- Model No : LTK-MXC42A
Download Brochure
